View Issue Details Jump to Notes ]
IDProjectCategoryView StatusLast Update
0001945FSSCPgraphicspublic2009-12-11 07:06
ReporterKeldorKatarn
Assigned ToHery
PriorityhighSeveritymajorReproducibilityalways
StatusresolvedResolutionfixed
PlatformIBM PCOSWindowsOS VersionVista SP1
Product Version3.6.11
Target Version3.6.12 RC1Fixed in Version3.6.11
Summary0001945: Black background in nebula missions with cutscene bars activated.
DescriptionIn nebula missions the background turns black during cutscenes. Tested with latest trunk EXE. See two pictures attached.
Steps To ReproduceSimply open a nebula mission and activate a cutscene (using the bars). I don't know if changing camera is needed. That's possible. It happens in Saga's autopilot cutscenes, so using the hardcoded autopilot cutscenes should cause this to show up as well.
TagsNo tags attached.
Attached Files

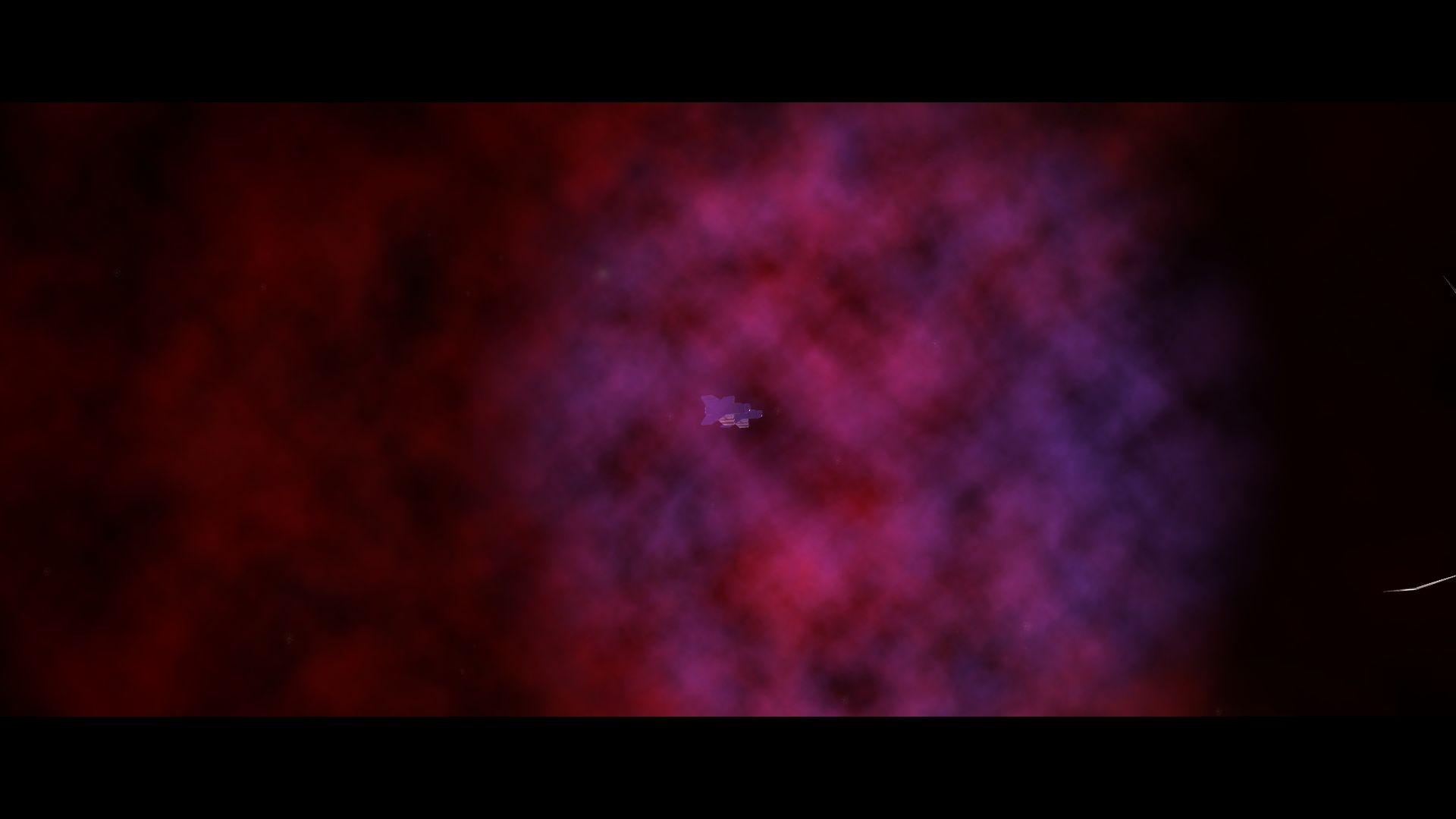

  • jpg file icon screen0211.jpg (47,939 bytes) 2009-06-28 20:05 -
    jpg file icon screen0211.jpg (47,939 bytes) 2009-06-28 20:05 +

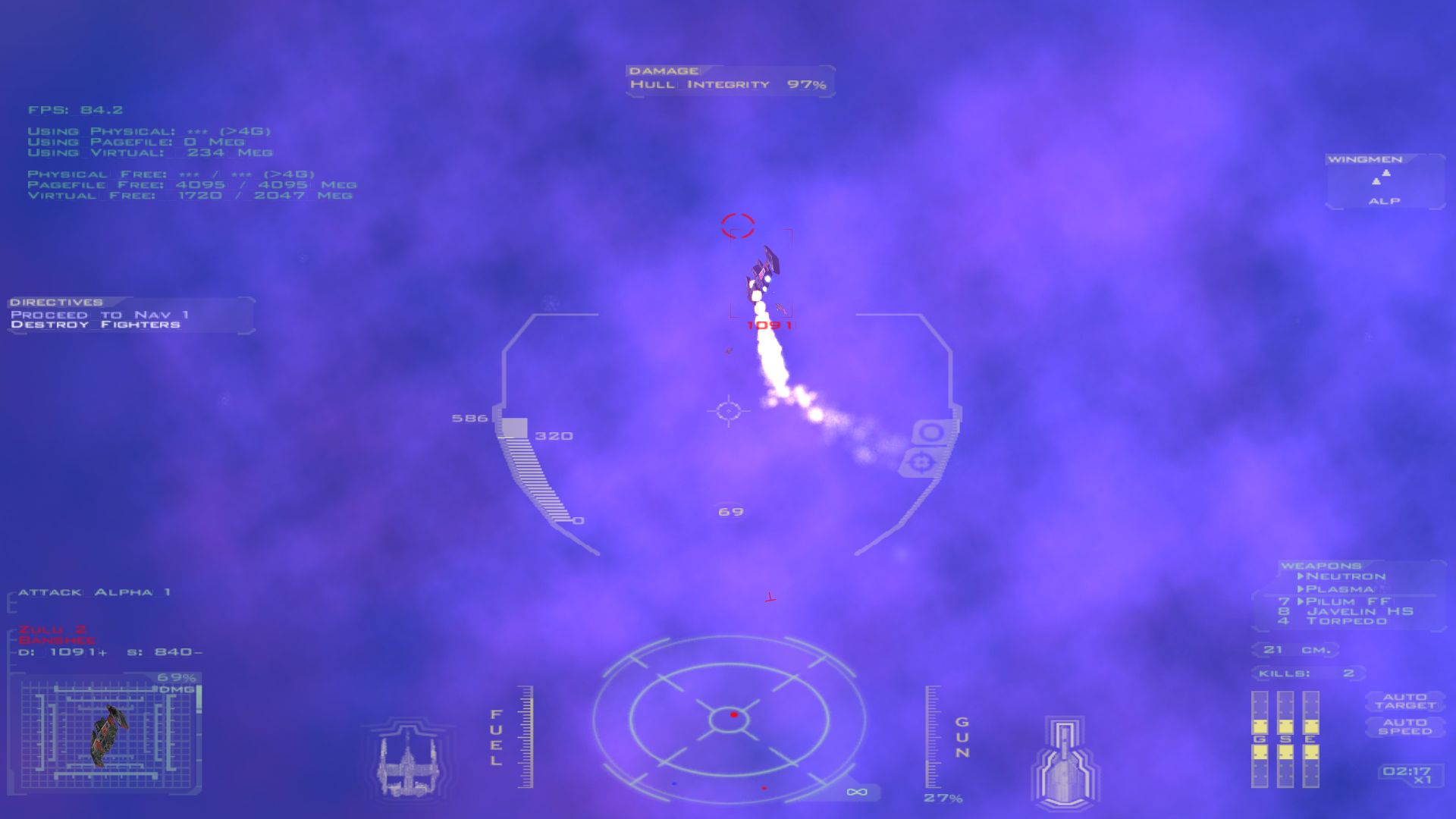

  • jpg file icon screen0210.jpg (105,109 bytes) 2009-06-28 20:06 -
    jpg file icon screen0210.jpg (105,109 bytes) 2009-06-28 20:06 +
  • patch file icon cutscene_bars.patch (1,837 bytes) 2009-11-11 16:15 -
    Index: code/freespace2/freespace.cpp
    ===================================================================
    --- code/freespace2/freespace.cpp	(revision 5644)
    +++ code/freespace2/freespace.cpp	(working copy)
    @@ -2803,6 +2803,11 @@
     		// Set the clip region for the letterbox "dead view"
     		int yborder = gr_screen.max_h/4;

    +		// Ensure that the bars are black
    +		gr_set_color(0,0,0);
    +		gr_rect(0, 0, gr_screen.max_w, yborder, false);
    +		gr_rect(0, gr_screen.max_h-yborder, gr_screen.max_w, yborder, false);
    +
     		//	Numeric constants encouraged by J "pig farmer" S, who shall remain semi-anonymous.
     		// J.S. I've changed my ways!! See the new "no constants" code!!!
     		gr_set_clip(0, yborder, gr_screen.max_w, gr_screen.max_h - yborder*2, false );
    @@ -4545,9 +4550,9 @@
     			yborder = gr_screen.max_h/CUTSCENE_BAR_DIVISOR - fl2i(Cutscene_bars_progress*(gr_screen.max_h/CUTSCENE_BAR_DIVISOR));

     		//Set rectangles
    -		//gr_set_color(0,0,0);
    -		//gr_rect(0, 0, gr_screen.max_w, yborder, false);
    -		//gr_rect(0, gr_screen.max_h-yborder, gr_screen.max_w, yborder, false);
    +		gr_set_color(0,0,0);
    +		gr_rect(0, 0, gr_screen.max_w, yborder, false);
    +		gr_rect(0, gr_screen.max_h-yborder, gr_screen.max_w, yborder, false);
     		//Set clipping
     		gr_reset_clip();
     		gr_set_clip(0, yborder, gr_screen.max_w, gr_screen.max_h - yborder*2, false );
    @@ -4556,9 +4561,9 @@
     	{
     		int yborder = gr_screen.max_h/CUTSCENE_BAR_DIVISOR;

    -		//gr_set_color(0,0,0);
    -		//gr_rect(0, 0, gr_screen.max_w, yborder, false);
    -		//gr_rect(0, gr_screen.max_h-yborder, gr_screen.max_w, yborder, false);
    +		gr_set_color(0,0,0);
    +		gr_rect(0, 0, gr_screen.max_w, yborder, false);
    +		gr_rect(0, gr_screen.max_h-yborder, gr_screen.max_w, yborder, false);
     		gr_reset_clip();
     		gr_set_clip(0, yborder, gr_screen.max_w, gr_screen.max_h - (yborder*2), false );
     	}

    patch file icon cutscene_bars.patch (1,837 bytes) 2009-11-11 16:15 +
  • patch file icon nebula_bars.patch (2,235 bytes) 2009-12-10 16:47 -
    Index: code/freespace2/freespace.cpp
    ===================================================================
    --- code/freespace2/freespace.cpp	(revision 5710)
    +++ code/freespace2/freespace.cpp	(working copy)
    @@ -3904,6 +3904,8 @@
     	gr_zbuffer_clear(TRUE);
     	clip_frame_view();

    +	neb2_set_frame_backg();
    +
     #ifndef DYN_CLIP_DIST
     	if (!Cmdline_nohtl) {
     		gr_set_proj_matrix(Proj_fov, gr_screen.clip_aspect, Min_draw_distance, Max_draw_distance);
    Index: code/nebula/neb.cpp
    ===================================================================
    --- code/nebula/neb.cpp	(revision 5710)
    +++ code/nebula/neb.cpp	(working copy)
    @@ -470,6 +470,23 @@
     	}
     }

    +void neb2_set_frame_backg() {
    +	ubyte tr = gr_screen.current_clear_color.red;
    +	ubyte tg = gr_screen.current_clear_color.green;
    +	ubyte tb = gr_screen.current_clear_color.blue;
    +
    +	neb2_get_fog_color(
    +		&gr_screen.current_clear_color.red,
    +		&gr_screen.current_clear_color.green,
    +		&gr_screen.current_clear_color.blue);
    +
    +	gr_clear();
    +
    +	gr_screen.current_clear_color.red   = tr;
    +	gr_screen.current_clear_color.green = tg;
    +	gr_screen.current_clear_color.blue  = tb;
    +}
    +
     // call before beginning all rendering
     void neb2_render_setup(camid cid)
     {
    @@ -485,21 +502,8 @@
     	if (Neb2_render_mode == NEB2_RENDER_HTL) {
     		// RT The background needs to be the same colour as the fog and this seems
     		// to be the ideal place to do it
    -		ubyte tr = gr_screen.current_clear_color.red;
    -		ubyte tg = gr_screen.current_clear_color.green;
    -		ubyte tb = gr_screen.current_clear_color.blue;
    +		neb2_set_frame_backg();

    -		neb2_get_fog_color(
    -			&gr_screen.current_clear_color.red,
    -			&gr_screen.current_clear_color.green,
    -			&gr_screen.current_clear_color.blue);
    -
    -		gr_clear();
    -
    -		gr_screen.current_clear_color.red   = tr;
    -		gr_screen.current_clear_color.green = tg;
    -		gr_screen.current_clear_color.blue  = tb;
    -
     		return;
     	}

    Index: code/nebula/neb.h
    ===================================================================
    --- code/nebula/neb.h	(revision 5710)
    +++ code/nebula/neb.h	(working copy)
    @@ -140,5 +140,8 @@

     void neb2_get_fog_color(ubyte *r, ubyte *g, ubyte *b);

    +// set frame background color
    +void neb2_set_frame_backg();

    +
     #endif

    patch file icon nebula_bars.patch (2,235 bytes) 2009-12-10 16:47 +

-Relationships
+Relationships

-Notes

~0011206

Tolwyn (reporter)

recorded a video to show what'S exactly going wrong

http://www.wcsaga.net/database/tolwyn/fs2_open_3_6_11r_5610_1.avi

~0011234

chief1983 (administrator)

Bumping since this is a show stopper.

~0011246

Hery (developer)

Apparently, someone tried to fix that problem, but failed. Now the background doesn't turn black, but cutscene bars are no longer black (also when player dies).

~0011247

chief1983 (administrator)

If you're working with the cutscene bars you will almost certainly want to look at 0001768.

~0011308

Hery (developer)

chief1983 committed my patch to the trunk.

~0011397

KeldorKatarn (reporter)

This still doesn't work with build fs2_open_3_6_11r-20091125_r5686

~0011398

Hery (developer)

I can't reproduce this bug, but I found another one (when player dies in nebula with cutscene bars on).

http://quarnos.org/dl/cutscene_bars_build.zip

KeldorKatarn, check if this build fixes your problem.

~0011399

KeldorKatarn (reporter)

Yes, no more black background with that one. What did you change?

~0011400

Hery (developer)

Now, background color is set twice, similarly to the clipping settings. This is necessary because of RTT code which needs to change current configuration for its own purpose, but doesn't restore it afterwards.

Patch attached.

~0011401

Hery (developer)

Fix committed.
+Notes

-Issue History
Date Modified Username Field Change
2009-06-28 20:05 KeldorKatarn New Issue
2009-06-28 20:05 KeldorKatarn File Added: screen0211.jpg
2009-06-28 20:06 KeldorKatarn File Added: screen0210.jpg
2009-10-02 03:18 Tolwyn Note Added: 0011206
2009-11-09 22:39 chief1983 Note Added: 0011234
2009-11-09 22:39 chief1983 Priority normal => high
2009-11-09 22:39 chief1983 Target Version => 3.6.12 RC1
2009-11-11 12:47 Hery Note Added: 0011246
2009-11-11 12:47 Hery Status new => assigned
2009-11-11 12:47 Hery Assigned To => Hery
2009-11-11 16:15 Hery File Added: cutscene_bars.patch
2009-11-12 00:08 chief1983 Note Added: 0011247
2009-11-19 08:30 Hery Note Added: 0011308
2009-11-19 08:30 Hery Status assigned => resolved
2009-11-19 08:30 Hery Fixed in Version => 3.6.12 RC1
2009-11-19 08:30 Hery Resolution open => fixed
2009-12-10 11:32 KeldorKatarn Note Added: 0011397
2009-12-10 11:32 KeldorKatarn Status resolved => feedback
2009-12-10 11:32 KeldorKatarn Resolution fixed => reopened
2009-12-10 12:55 Hery Note Added: 0011398
2009-12-10 16:29 KeldorKatarn Note Added: 0011399
2009-12-10 16:47 Hery File Added: nebula_bars.patch
2009-12-10 16:53 Hery Note Added: 0011400
2009-12-11 07:06 Hery Note Added: 0011401
2009-12-11 07:06 Hery Status feedback => resolved
2009-12-11 07:06 Hery Fixed in Version 3.6.12 RC1 => 3.6.11
2009-12-11 07:06 Hery Resolution reopened => fixed
