View Issue Details

IDProjectCategoryView StatusLast Update
0000081FSSCPgraphicspublic2004-02-20 22:17
ReporterCP5670 Assigned ToRandomTiger
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Summary0000081: Laserglow effects show through ship models

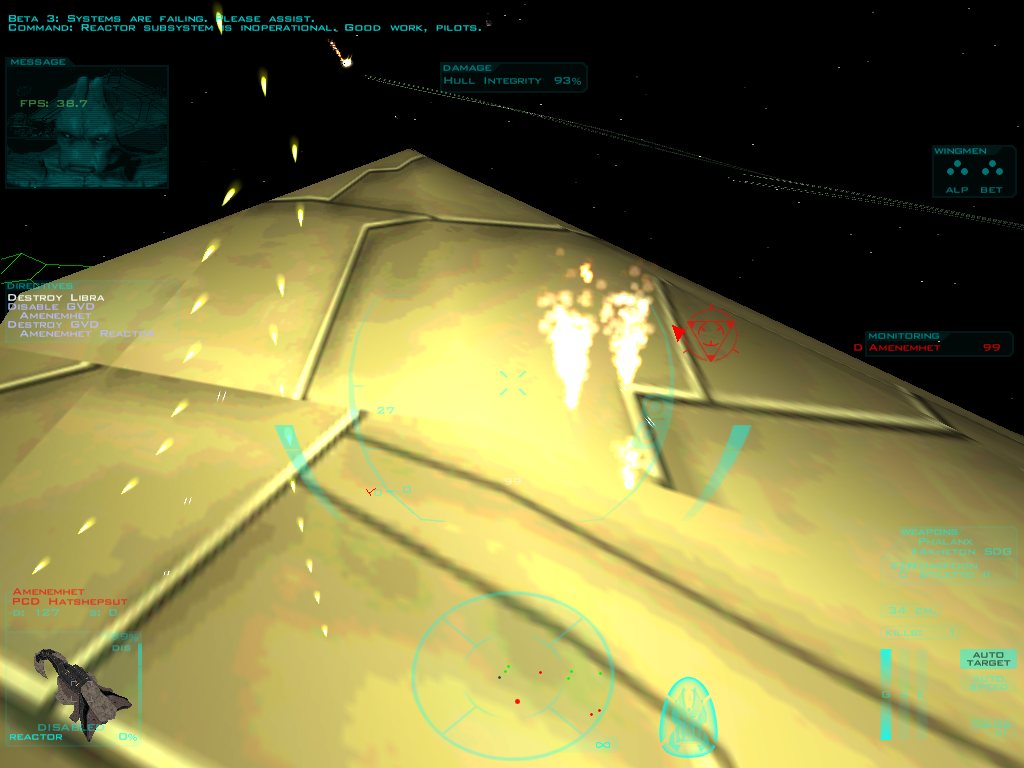

DescriptionThe problem can be seen in the screenshot; the turret projectiles are on the other side of the destroyer but are visible right through the ship. This bug was gone for a while but seems to be back in the 01_20_2004 build and occurs on D3D8 1024x768x32 without AA and with the options -htl, -jpgtga, -d3dmipmap, -fps and -fov 0.65.
TagsNo tags attached.

Activities

2004-01-23 19:15




RandomTiger

2004-01-24 12:50

developer   ~0000096

This bug doesnt always happen, looks like it depends on what ever the render oder is. If you pause a scene with Alt-Pause and rotate round the scene at lease one or two objects will have the lasers rendered on top when they are behind.

DOes this happen in OGL as well I wonder?

CP5670

2004-01-25 10:28

reporter   ~0000098

The screen there was in the middle of standard gameplay though. Something ingame must be triggering it, as it tends to suddenly start occurring midway through a mission and then usually stays that way until the mission end.

RandomTiger

2004-02-04 20:53

developer   ~0000155

This only happens in D3D, I've found a fix to it using some code Fry_day wrote, unfortunately this causes the lasers to render flat. V's original code applied some kind of distortion to give it depth from any viewpoint.

See code/render/3dlaser.cpp for the relevent code.

RandomTiger

2004-02-04 20:54

developer   ~0000156

P.S. This is a htl bug and it can happen at any time, just depends on what the render order happens to be.

RandomTiger

2004-02-20 22:17

developer   ~0000217

Bug has fixed this

Issue History

Date Modified Username Field Change
2004-01-23 19:15 CP5670 New Issue
2004-01-23 19:15 CP5670 File Added: screen03.jpg
2004-01-24 12:50 RandomTiger Note Added: 0000096
2004-01-25 10:28 CP5670 Note Added: 0000098
2004-02-04 20:53 RandomTiger Note Added: 0000155
2004-02-04 20:54 RandomTiger Note Added: 0000156
2004-02-20 22:17 RandomTiger Status new => resolved
2004-02-20 22:17 RandomTiger Resolution open => fixed
2004-02-20 22:17 RandomTiger Assigned To => RandomTiger
2004-02-20 22:17 RandomTiger Note Added: 0000217
