IDProjectCategoryView StatusDate SubmittedLast Update
0002687FSSCPgraphicspublic2012-07-14 10:252012-08-16 09:57
Reporterniffiwan Assigned ToEchelon9
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
PlatformLinuxOSxubuntuOS Version12.04
Product Version3.6.13
Fixed in Version3.6.14
Summary0002687: In weapon selection window, glowpoints can be seen through a ships hull
DescriptionThe summary pretty much says it - see the attached screenshots.

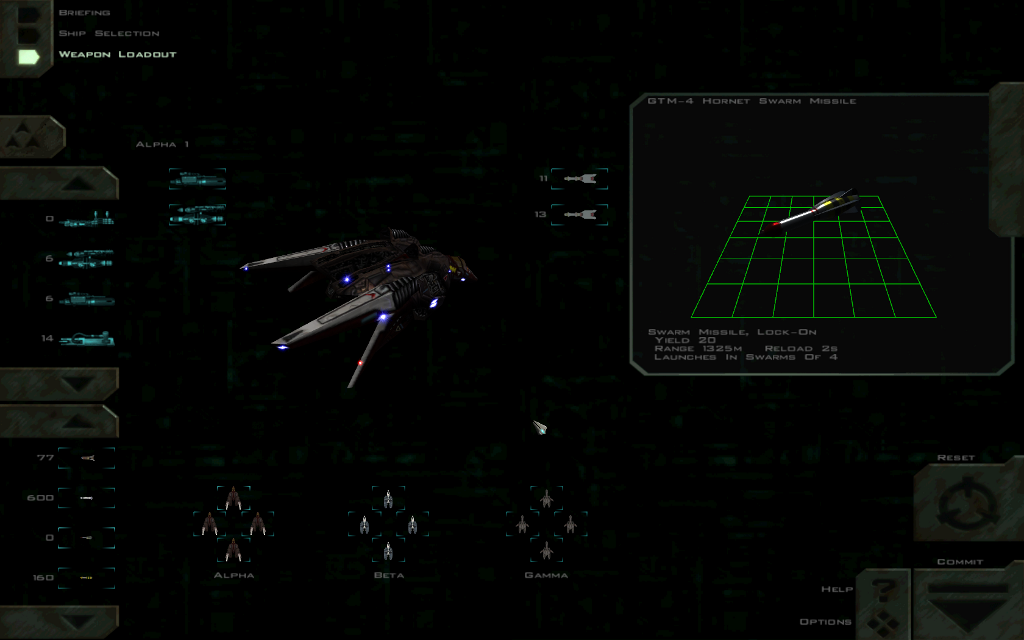

One taken with 3.6.14 RC6 is normal

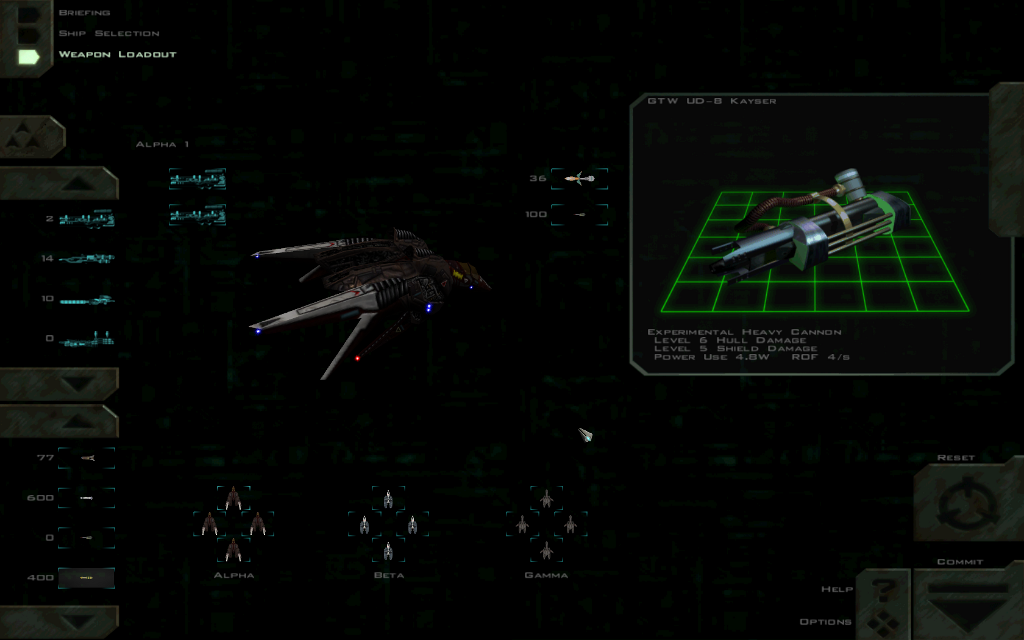

One from r9010 has them showing through the hull
TagsNo tags attached.

Activities

niffiwan

2012-07-14 10:25

developer


niffiwan

2012-07-14 10:25

developer


Echelon9

2012-08-14 15:03

developer   ~0013907

I think this was fixed in current trunk? Can you please retest.

niffiwan

2012-08-15 08:47

developer


niffiwan

2012-08-15 08:52

developer   ~0013909

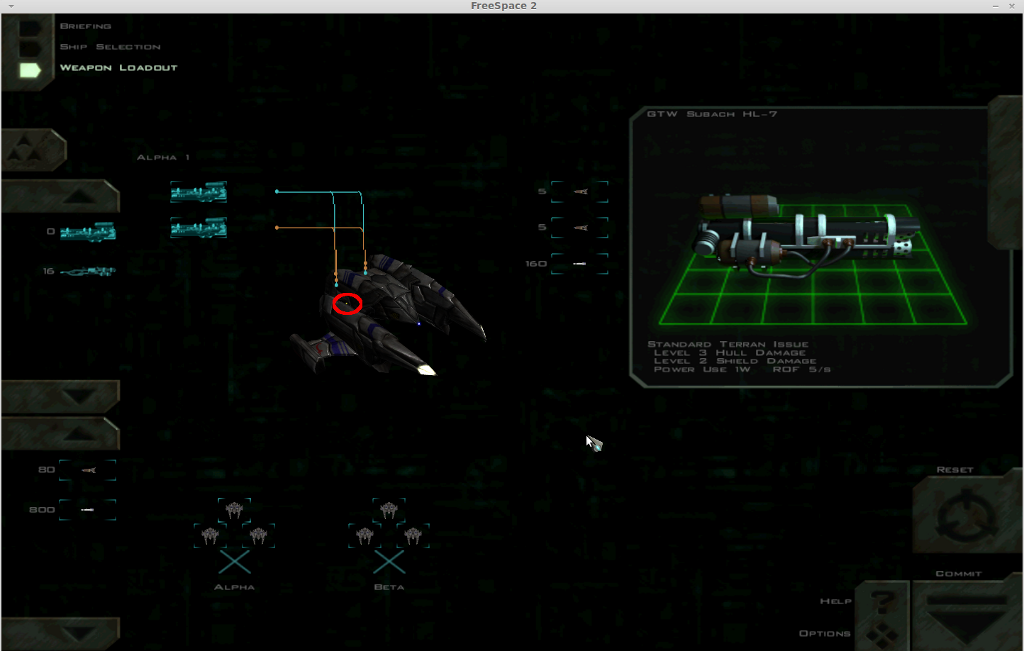

Still seems to occur in trunk 9109. It was a bit harder to see with the Myrmidon so I stuck a red circle around the yellow glowpoint that should not be visible. Also note:

1) doesn't occur in F3 ship lab
2) doesn't occur in the ship selection screen, only the weapon selection screen
3) glowpoints are correctly hidden at certain points during the ships rotation. It almost looks like some parts of the model are correctly hiding the glowpoint (maybe the cockpit) while other parts don't (the wing stubs on the Myrmidon).

Echelon9

2012-08-15 12:04

developer   ~0013910

Yup, have verified this as occurring in latest r9109. Bringing swifty in as he may have some insights.

Echelon9

2012-08-15 12:14

developer

fix_mantis_2687.patch (708 bytes)
Index: code/missionui/missionweaponchoice.cpp
===================================================================
--- code/missionui/missionweaponchoice.cpp	(revision 9109)
+++ code/missionui/missionweaponchoice.cpp	(working copy)
@@ -885,9 +885,13 @@
 			light_add_directional(&light_dir, 0.65f, 1.0f, 1.0f, 1.0f);
 			light_rotate_all();

+            Glowpoint_use_depth_buffer = false;
+
 			model_clear_instance(wl_ship->model_num);
 			model_render(wl_ship->model_num, &object_orient, &vmd_zero_vector, MR_LOCK_DETAIL | MR_AUTOCENTER | MR_NO_FOGGING, -1, -1);

+            Glowpoint_use_depth_buffer = true;
+
 			batch_render_all();

 			//NOW render the lines for weapons
fix_mantis_2687.patch (708 bytes)

Echelon9

2012-08-15 12:15

developer   ~0013911

Actually, think I might have already fixed this one.

Can you please review the attached patch, for the fix to the weapon select screen.

niffiwan

2012-08-16 09:12

developer   ~0013913

The patch has resolved the problem for me.

Echelon9

2012-08-16 09:57

developer   ~0013914

Have committed the fix to trunk.

Frankly, we should keep an eye out for this bug, as it was also partially fixed in r9031.

Issue History

Date Modified Username Field Change
2012-07-14 10:25 niffiwan New Issue
2012-07-14 10:25 niffiwan File Added: glowpoints-3-6-14-RC6.png
2012-07-14 10:25 niffiwan File Added: glowpoints-showing-through-hull.png
2012-08-14 15:03 Echelon9 Note Added: 0013907
2012-08-14 15:03 Echelon9 Assigned To => Echelon9
2012-08-14 15:03 Echelon9 Status new => feedback
2012-08-15 08:47 niffiwan File Added: glowpoints-through-hull.png
2012-08-15 08:52 niffiwan Note Added: 0013909
2012-08-15 08:52 niffiwan Status feedback => assigned
2012-08-15 12:04 Echelon9 Note Added: 0013910
2012-08-15 12:04 Echelon9 Assigned To Echelon9 => Swifty
2012-08-15 12:04 Echelon9 Status assigned => confirmed
2012-08-15 12:14 Echelon9 File Added: fix_mantis_2687.patch
2012-08-15 12:15 Echelon9 Note Added: 0013911
2012-08-15 12:15 Echelon9 Status confirmed => code review
2012-08-16 09:12 niffiwan Note Added: 0013913
2012-08-16 09:57 Echelon9 Note Added: 0013914
2012-08-16 09:57 Echelon9 Status code review => resolved
2012-08-16 09:57 Echelon9 Fixed in Version => 3.6.14
2012-08-16 09:57 Echelon9 Resolution open => fixed
2012-08-16 09:57 Echelon9 Assigned To Swifty => Echelon9
